Gold Etchants

for Microelectronics Circuits Selective etchants for gold, compatible with negative and positive photoresists-used in thin film microelectronics to develop circuit elements.

  • Etching readily controlled with minimum undercutting — provides excellent definition.
  • Room-temperature operated.
  • Uniform etch rates
  • Economical
  • Gold Etchants TFA, GE-8148, GE-8110, and GE-8111 are available in glass or plastic packaging depending on shipment method

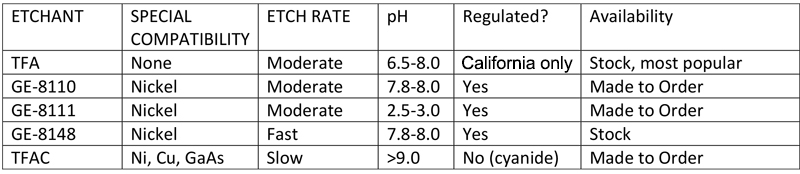

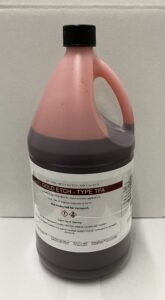

GOLD ETCHANT TFA and GOLD ETCHANT GE-8148

DESCRIPTION: These thin film etchants are used to obtain selective etching of gold in the photo fabrication of microelectronic circuits. Used in conjunction with photoresist technology, these etchants form precise electrodes and resistor patterns in thin films prepared on alumina and other substrates. High purity, low sodium and 0.2 micron filtration for semiconductor and microelectronics applications. Gold Etchant TFA – Cyanide free for standard applications. GE-8148 – Cyanide free, no attack of nickel films.

PROPERTIES OF TRANSENE GOLD ETCHANT TFA

How do I increase the etch rate? 1. The rate will approximately double with every 10°C increase in temperature.
2. Increase the rate of stirring or agitation.
How do I reduce the etch rate? Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%.
Do I need to dilute the etchant? No, it is ready to use.
How do I reduce undercutting? Increase the rate of stirring or agitation.
Appearance Amber-brown
pH 6.5-8.0
Etch Rate at 25°C 28 Å/sec.
Etch Capacity (rate declines at ~70%) 65 g/gallon
Shelf Life 1 year
Storage Conditions Ambient
Filtration 1 um
Recommended Operating Temperatures 20-80oC (30-40oC most common)
Rinse Deionized water; may be followed with alcohol rinse followed with alcohol rinse if dark residue remains.
Photoresist Recommendations KLT6000 Series, KLT 5300 Series, HARE SQ (SU-8 type), TRANSIST, or PKP Type II
Select Compatible Materials SiO2, Cr, Si, NiCr, Ti, Ti-W

See http://transene.com/etch-compatibility/ for more details.

Select Incompatible Materials Ni, Cu, Al, Ag, GaAs
Compatible Plastics HDPE, PP, Teflon, PFA, PVC
Country of Origin USA
Availability 1-2 days
Available Sizes Quart, Gallon, 5 Gallon, 55 Gallon
Packaging HDPE
Packing 4 gallons/case
Isotropy Isotropic
Incompatible Chemicals
Additional Information

Max. Impurity (ppm, Gold Etch TFA)

Sodium ( Na) 40
Chlorine & Bromides (Cl) 100
Lead (Pb) 5
Iron (Fe) 3
Sulfur (as sulfates) 50
Phosphorous (as phosphates in TFA) 10

PROPERTIES OF TRANSENE GOLD ETCHANT GE-8148

How do I increase the etch rate? 1. The rate will approximately double with every 10°C increase in temperature.
2. Increase the rate of stirring or agitation.
How do I reduce the etch rate? Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%.
Do I need to dilute the etchant? No, it is ready to use.
How do I reduce undercutting? Increase the rate of stirring or agitation.
Appearance Amber-brown
pH 7.8-8.2
Etch Rate at 25°C 50 Å/sec.
Etch Capacity (rate declines at ~70%) 65 g/gallon
Shelf Life 1 year
Storage Conditions Ambient
Filtration 1 um
Recommended Operating Temperatures 20-80oC (30-40oC most common)
Rinse Deionized water; may be followed with alcohol rinse followed with alcohol rinse if dark residue remains.
Photoresist Recommendations KLT6000 Series, KLT 5300 Series, HARE SQ (SU-8 type), TRANSIST, or PKP Type II
Select Compatible Materials SiO2, Cr, NiCr, Ni, Ti, Ti-W

See http://transene.com/etch-compatibility/ for more details.

Select Incompatible Materials Al, Cu, GaAs, Ag
Compatible Plastics HDPE, PP, Teflon, PFA, PVC
Country of Origin USA
Availability 1-2 days
Available Sizes Quart, Gallon, 5 Gallon, 55 Gallon
Packaging HDPE
Packing 4 gallons/case
Isotropy Isotropic
Incompatible Chemicals
Additional Information

Max. Impurity (ppm, Gold Etch TFA)

Sodium ( Na) 40
Chlorine & Bromides (Cl) 100
Lead (Pb) 5
Iron (Fe) 3
Sulfur (as sulfates) 50
Phosphorous (as phosphates in TFA) 10

GOLD ETCHANT GE-8110 GE-8111 GE-8110 and GE-8111 Gold Etchants are etching solutions designed specifically for etching thin films of gold in the fabrication of semiconductor devices and thin film microelectronics. The solutions are based on potassium iodide and iodine ( KI/I2) chemistry and do not contain cyanide. They are compatible with both positive and negative photoresist materials, giving controllable line definition. GE-8110 is buffered to approximately pH 8.0 while GE-8111 is acidic with a lower solids content and is a slower acting etching solution. Both etchants should be used at room temperature in a well-ventilated area. Physical and Chemical Properties: Appearance and odor: dark brown liquid with iodine vapor odor.

GE-8110 GE-8111
pH (20 °C) 7.9 ± 0.1 2.5 ± 0.1
Density ( 20 °C) 1.33 ± 0.01 1.15 ± 0.01
Etch Rate ( 30 °C) 20Å/sec 30Å/sec

REAGENT GRADE CHEMICAL

IMPURITY SPEC. PPM (MAX)
MAX-IMPURITY PPM
Sodium ( Na) 40
Chlorine & Bromides ( Cl) 100
Lead (Pb) 5
Iron (Fe) 3
Sulfur (as sulfates) 50

Storage and Handling Store at room temperature away from sunlight. Keep container sealed when not in use. Iodine vapor can irritate the eyes severely. Open in ventilated areas. In case of contact with eyes or skin, wash with plenty of water (or soapy water for skin), and consult a physician if irritation persists.

GOLD ETCHANT TFAC FOR INTERMETALLIC SUBSTRATES

DESCRIPTION: Gold Etchant TFAC is a selective etchant for the preparation of microelectronic circuits on gallium arsenide, gallium phosphide, and other intermetallic semiconductor compounds. Gold Etchant TFAC provides excellent definition with minimal undercutting. Uniform etch rates are obtained with this cyanide based etchant. Gold Etchant TFAC strips gold from copper, brass, bronze, nickel, and other non-ferrous metals (except silver). Gold Etch TFAC is compatible with aluminum.

PROPERTIES OF TRANSENE GOLD ETCHANT TFAC FOR INTERMETALLIC SUBSTRATES

How do I increase the etch rate? 1. The rate will approximately double with every 10°C increase in temperature.
2. Increase the rate of stirring or agitation.
How do I reduce the etch rate? Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%.
Do I need to dilute the etchant? No, it is ready to use.
How do I reduce undercutting? Increase the rate of stirring or agitation.
Appearance Solids mixture; white to off-white
pH Alkaline when dissolved
Etch Rate at 60°C 30 Å/sec.
Etch Capacity (rate declines at ~70%) 90 g/gallon
Shelf Life 1 year; 4-6 weeks when dissolved
Storage Conditions Ambient
Filtration Not applicable
Recommended Operating Temperatures 40-60 oC
Rinse Deionized water
Photoresist Recommendations PKP Type II or HARE SQ (SU-8 type)
Select Compatible Materials GaAs, Si, Ni, Al

See http://transene.com/etch-compatibility/ for more details.

Select Incompatible Materials SiO2
Compatible Plastics HDPE, PP, Teflon, PFA, PVC
Country of Origin USA
Availability 1-2 days
Available Sizes 4 oz bottle, 8 oz bottle
Packaging HDPE
Packing 1 bottle/case
Isotropy Isotropic
Incompatible Chemicals Acids
Additional Information Cyanide chemistry

APPLICATION: Warm water to approximately 50 °C to aid dissolution. Add 8oz Gold Etchant TFAC powder per gallon deionized water. Etch the conductor pattern to remove gold; etch time depends on thickness. Spent etchant should be saved for gold reclamation. Disposal: Segregate solution. Cyanide should be handled carefully and disposed of according to local and state regulations.

AU1 Gold Conductor Etchant

Transene’s premium AU1 gold conductor etchant is designed for photo-etching ultra-precision mini-circuits and chemical milling micro-components. AU1’s carefully controlled formula is ideal for etching hybrid thin film circuits, such as resistor-conductor and microwave conductor patterns. The formulation of AU1 Gold Etchant is one of the strongest available today and offers many advantageous features and benefits. Longer lasting: AU1 is specially formulated to retain more gold in solution. Because it is long lasting, you optimize your production schedule and minimize downtime. Fast etching rate: AU1 selectively, rapidly, and uniformly dissolves vacuum-deposited gold with minimum undercutting. The typical etching rate for 24-karat-gold thin film is approximately 500-800 Angstroms per second at 40-50 degrees C. AU1 provides excellent photo pattern resolution and definition and does not adversely affect photo resists. Etch Rate vs. Temperature Cyanide free: The AU1 solution contains no cyanides. It is a stable and reliable etchant that is safer to use than other gold etchants on the market. Enhances gold recovery: Transene’s complementary gold recovery product, GOLDOUT™, recovers 99.4% of the gold from spent AU1. As a result, Transene’s spent etchant is less hazardous to dispose than that of other gold etchants on the market. Easy, on-site gold recovery is an added benefit for semiconductor manufacturers, when you consider the price of gold on the market. FEATURES

  • Longer Lasting
  • Fast etching rate
  • Cyanide-free
  • Enhances gold recovery when used with Transene’s GOLDOUT™
  • Convenient and ready to use
  • Custom formulations available

Click here for environmental information from the MASS Dept. of EPA

GOLDOUT™

Designed to complement its high-quality gold etchant (AU1), Transene’s revolutionary, new product, GOLDOUT™, recovers 99.4% of the gold from spent Transene gold etchant, with minimal health and safety risks to the user. GOLDOUT™ offers many advantageous features and benefits. Makes gold recovery safer and easier: In contrast to other gold recovery products now on the market, GOLDOUT™ does not contain strong acids or volatile chemicals that produce toxic fumes or liquids. It is a stable, relatively safe product that does not require complex health and safety procedures for use. Within 15 to 20 minutes after the GOLDOUT™ powder is mixed with the spent gold etchant, the gold begins settling out of the liquid. Minimizes wastes and lowers environmental costs: Because GOLDOUT” is less hazardous than other gold recovery chemicals (that contain lower pH levels), the used etchant is less hazardous. This enables manufacturers to save money on waste disposal, regulatory compliance (recordkeeping, reporting, and tracking), and potential future liabilities. Provides added income through gold recovery: The ability to more easily recover gold on site provides semiconductor manufacturers with more control of the precious metals they use, and, considering the market price of gold, provides added cost savings. FEATURES

  • Makes gold recovery safer and easier
  • Non-hazardous
  • Reduced user health and safety risks
  • Recovery process is quick
  • Minimizes wastes and lowers environmental costs
  • Provides added income through gold recovery
